Confidence Delivered
Specifically designed for use on ebikes, Reserve’s new 30|HD 31|DH E-29 wheelsets offer the perfect balance of stiffness, performance, durability and weight. On the E-29 wheelset, the full 29 inchwheels will help you carry momentum over the toughest obstacles.
This wheelset utilises a 30|HD rim up front with a 31|DH out back to compliment the weight and power of an e-bike. Rock-solid lifetime warranty - just like on our frames and bearings.
Designed ForTrail, all mountain and enduro E-riding
Specifications:
Designed For: Trail, all mountain and enduro riding
Inner Width: 30mm 30|HD, 31mm 31|DH
Sizes Available: 29
Recommended Tire Dimensions: 2.4 to 2.6
Spoke Count: 28 (30|HD), 32 (31|DH)
Rated for e-bike use
Features:
Spoke reinforcements
Reserve uses externally reinforced spoke holes to strengthen the area where the rim sees the most force, around the spoke nipple. This provides for improved strength without adding unnecessary weight.
Redesigned rim bed makes tubeless set up easy
Redesigned rim bed eases tubeless installation, with a shaped rim bed utilising offset spoke holes that allows the tire to easily push past the bead bump to seat tubeless tires.
Asymmetrical Design (flipped front to rear)
Asymmetrical rims build stiffer, stronger and more reliable wheels by improving the bracing angles and equalising the spoke tensions between the drive and non-drive side spokes.
Tech
Hub
Industry 91/1
Wheelset Weight
2185g
Wheel Type
Mountain
Internal Width
30mm (30|HD), 31mm (31|DH)
Spoke Count
28 (30|HD), 32 (31|DH)
ERD
598mm (30|HD), 594 (31|DH)
Asymmetric Offset
4mm (30|HD), 5mm (31|DH)
Recommended Tire Width
2.4 - 2.6 in.
Driver Options
XD or MicroSpline
Brake Options
6-Bolt or Centerlock
Depth
20mm (30|HD), 21mm (31|DH)
Endcap Options
Standard
Hub Spacing
110/148

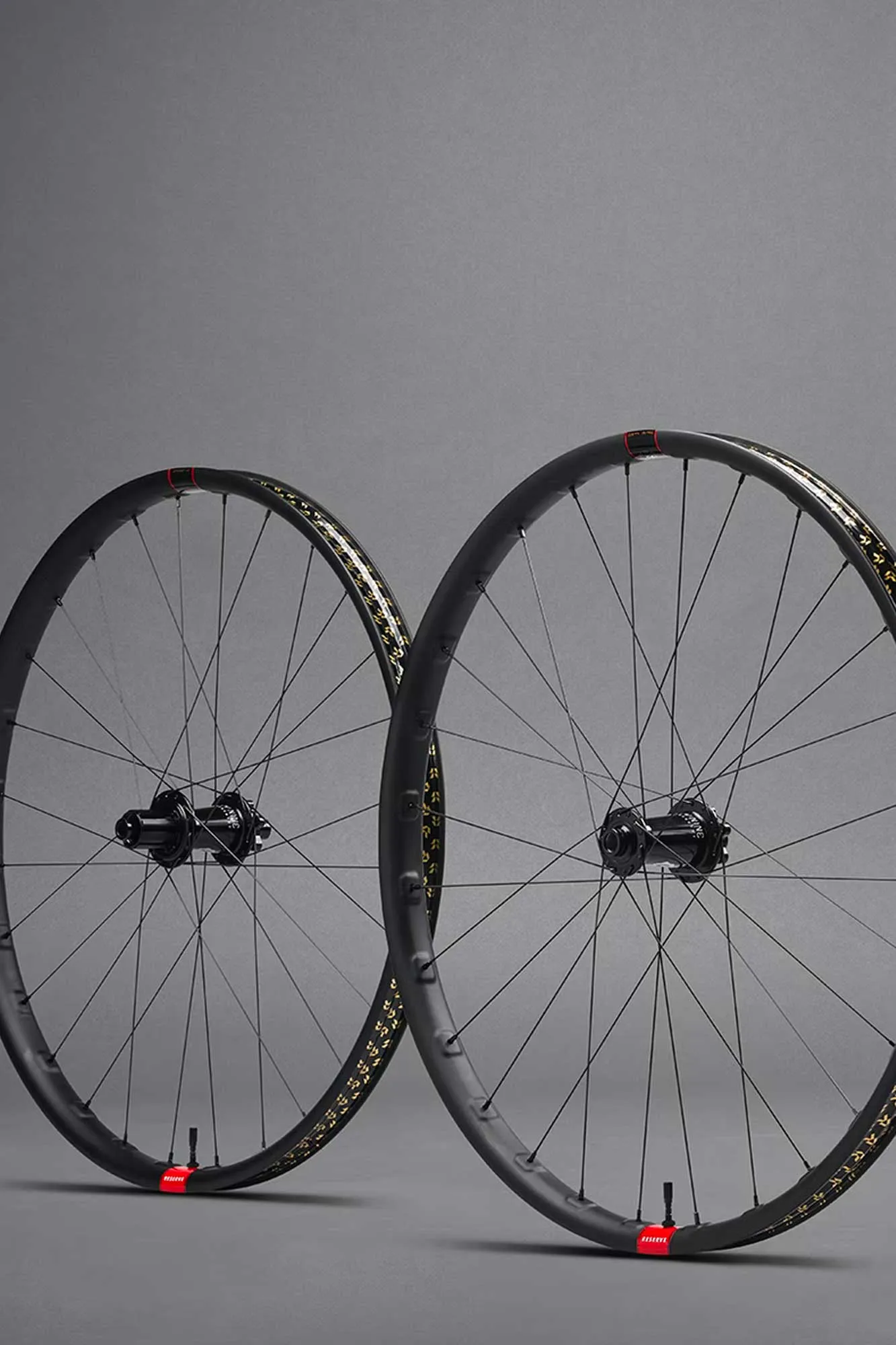

Reserve E-29 x Industry9 1/1 Wheelset
